Cognex ↔ Keyence — A Two-Way Equivalence Guide for Machine Vision & ID
Match any product class to its counterpart in the other brand — whichever direction you are coming from.
Who this is for: This is a two-way reference. Whether you currently work with Keyence and need the equivalent Cognex camera or reader, or you work with Cognex and want to find the matching Keyence product, this guide lines the two brands up category by category so you can read across in either direction — even with no prior experience of the other brand. Every model class shown here ships with integrated lighting, so there is no separate light to select or wire.
Both Keyence and Cognex cover the same ladder of industrial vision and code-reading products — from a simple AI vision sensor up to a high-performance smart camera, plus fixed-mount and handheld barcode readers. The names differ, but the categories line up cleanly. Find your product in either brand column and read across to its counterpart.
The Equivalence Table at a Glance
| Category | Keyence | Cognex | ||
|---|---|---|---|---|
| Model | Integrated light | Model | Integrated light | |
| VisionEntry AI vision sensor | IV4 series | Integrated ring light | In-Sight SnAPP | Integrated ring light |
| VisionDeep-learning smart camera | VS smart camera (VS-L / VS-S) | Integrated lighting | In-Sight 2800 | RGBW Multi Torch |
| VisionHigh-performance smart camera | VS smart camera (VS-L / VS-S) | Integrated lighting | In-Sight 3800 | RGBW Multi Torch |
| IDFixed-mount code reader | SR-X / SR-2000 | Integrated light | DataMan 290 | Integrated light |
| IDRugged handheld reader | HR-X (or SR-G100) | Integrated | DataMan 8700 | Integrated |
What Each Category Is For
All product images below are the property of their respective manufacturers — Cognex Corporation and KEYENCE Corporation — and are reproduced here solely for product identification and comparison. All product names, model designations and logos are trademarks of their respective owners.
Entry AI vision sensor

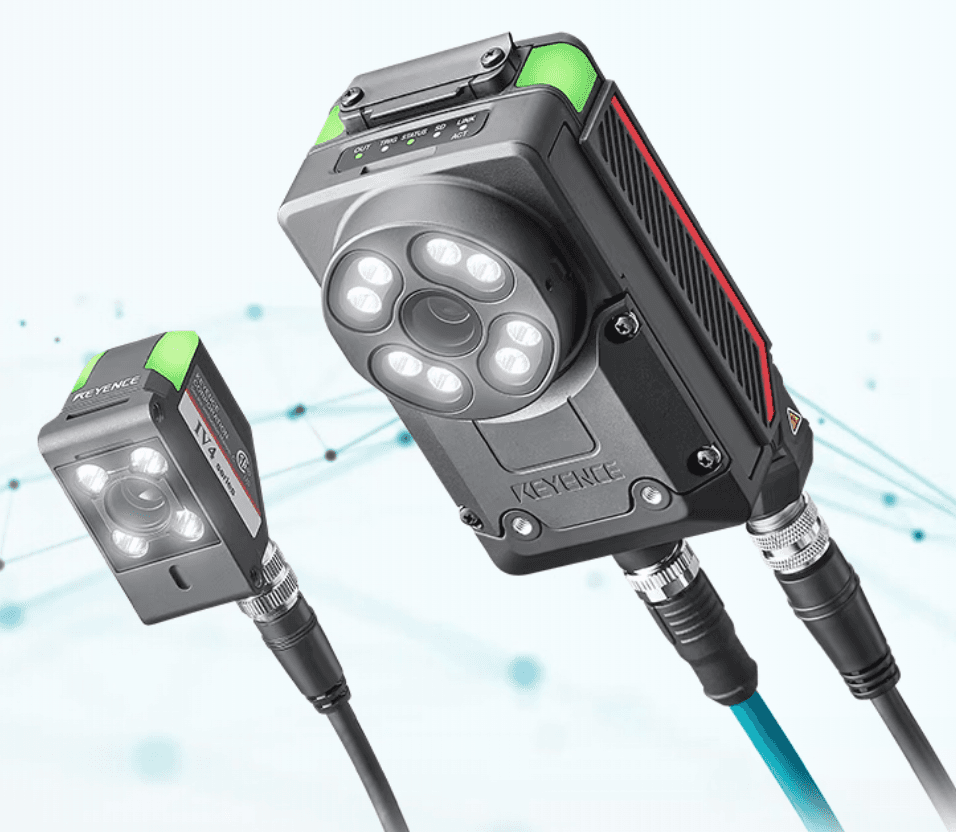

Keyence IV4 ↔ Cognex In-Sight SnAPP
The simplest tier: a compact AI vision sensor for everyday checks — presence/absence, basic classification and counting — set up quickly without deep vision expertise. The Keyence IV4 and the Cognex In-Sight SnAPP are the like-for-like pair. Both come in monochrome and colour, and both have an integrated ring light built in.
Deep-learning smart camera

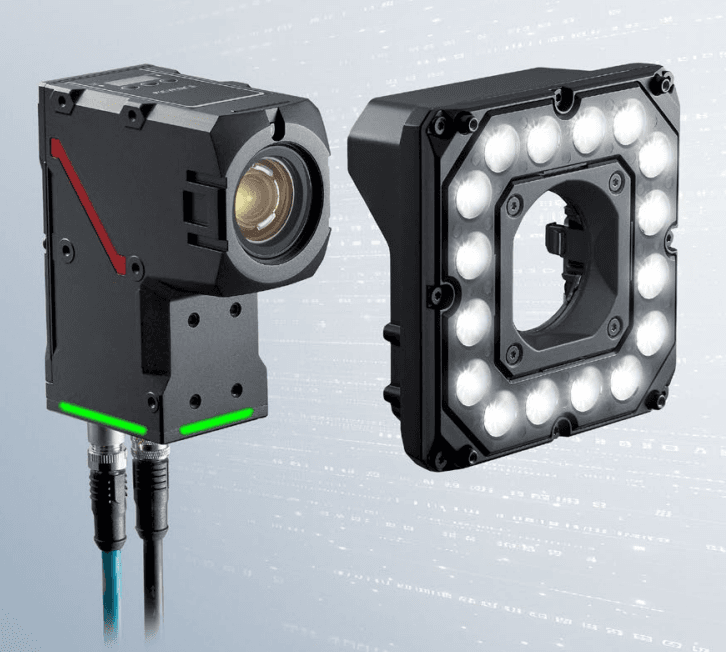

Keyence VS ↔ Cognex In-Sight 2800
A step up into deep-learning inspection: variable defects, awkward surfaces and challenging text that rule-based tools struggle with. The Keyence VS smart camera (VS-L / VS-S heads) and the Cognex In-Sight 2800 are counterparts, both running a deep-learning toolset. Both offer monochrome and colour, with integrated lighting (Cognex uses its RGBW Multi Torch).
High-performance smart camera

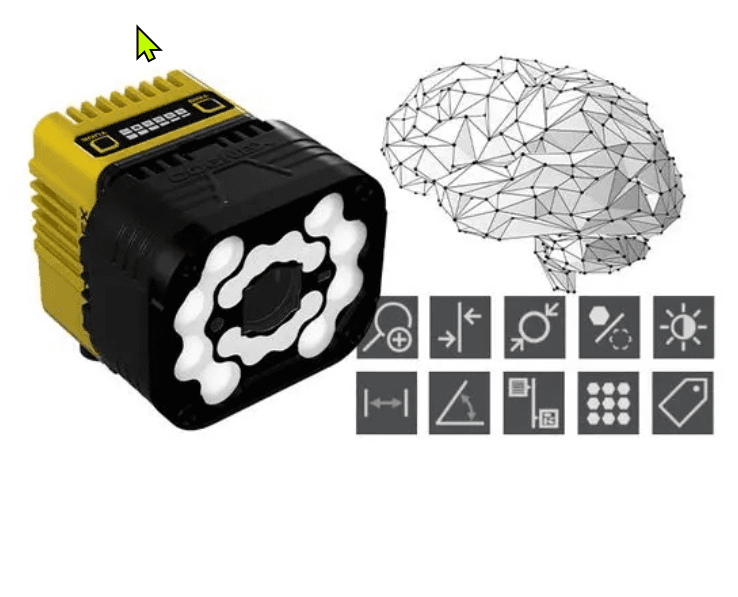

Keyence VS ↔ Cognex In-Sight 3800
The full-capability, all-in-one smart camera for demanding inspection, gauging and metrology, with a complete tool library and higher resolution options. On the Keyence side this is the standalone VS smart camera; on the Cognex side it is the In-Sight 3800. Note that both the 2800 and 3800 correspond to the same Keyence VS smart-camera class — Cognex simply splits that range into a deep-learning-focused model (2800) and a higher-performance, full-toolset model (3800).
Fixed-mount code reader

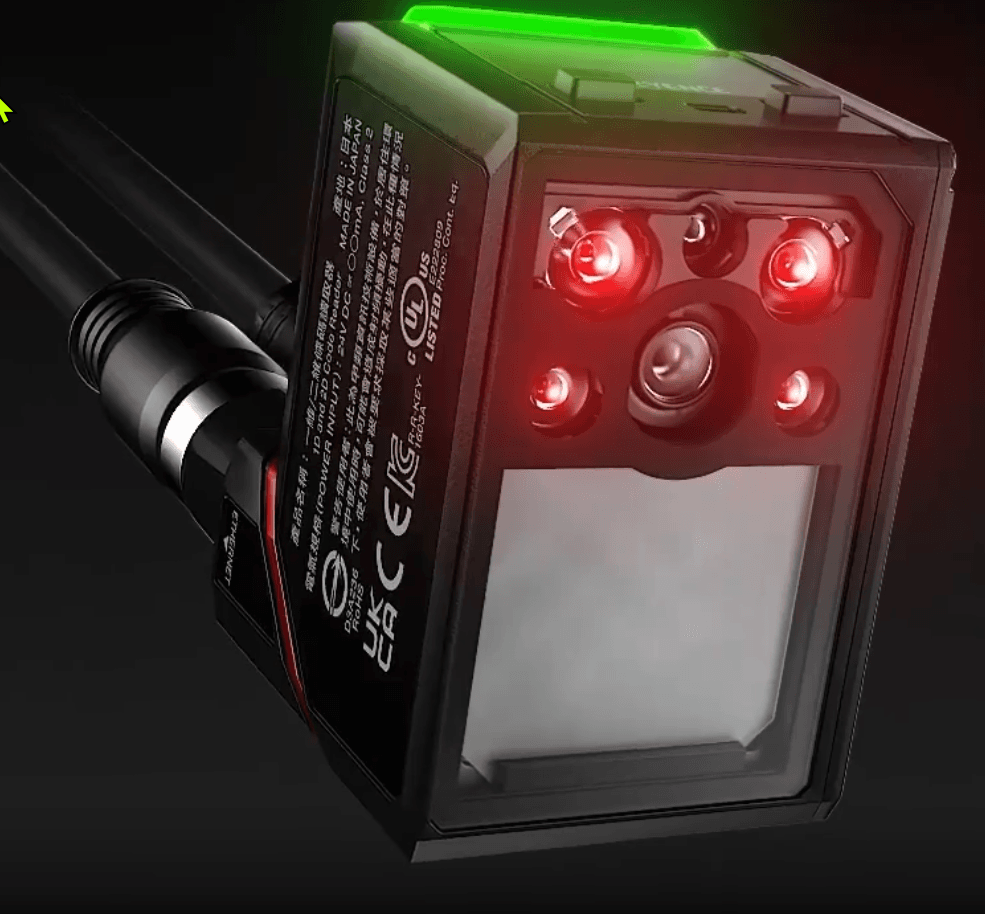

Keyence SR ↔ Cognex DataMan 290
An inline, fixed-mount 1D/2D barcode reader for production and logistics lines. The Keyence SR-X / SR-2000 and the Cognex DataMan 290 are equivalents. Both are offered with different integrated-light and lens options to suit working distance, field of view and reflective surfaces.
Rugged handheld reader

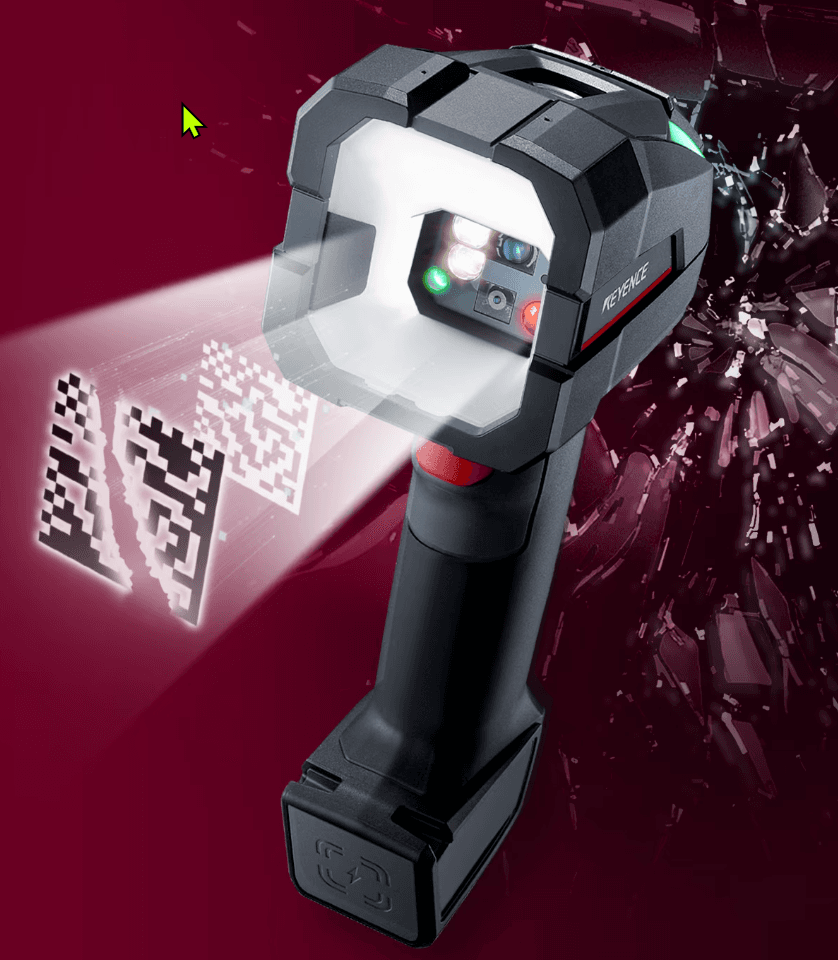

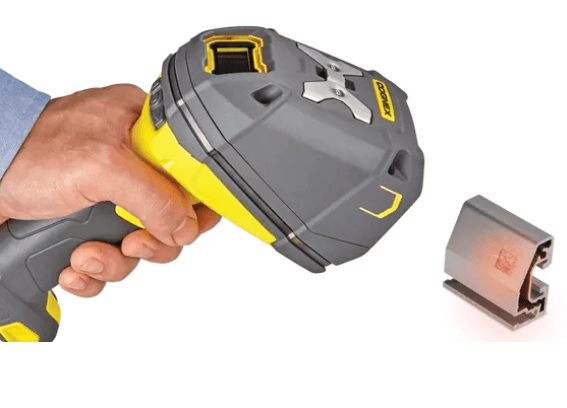

Keyence HR-X ↔ Cognex DataMan 8700
A rugged handheld scanner for direct-part-mark (DPM) and label reading on the factory floor. The Keyence HR-X (and the SR-G100 for wireless DPM) corresponds to the Cognex DataMan 8700, which offers different reading engines for everything from challenging DPM codes to very small, high-density marks — each with its own integrated illumination.
One tier higher: the controller / PC-based tier
Above the all-in-one smart-camera range sits the controller-based tier, where a separate controller (or PC) drives one or more camera heads for the most demanding, high-resolution or multi-camera applications. On the Keyence side this covers two platforms — the current VS-G series (the VS-G2900 controller with separate heads) and the established XG-X series it succeeds. Both line up against Cognex's controller / PC-based VisionPro, not the all-in-one In-Sight range.
| Reference tier | Keyence | Cognex | ||
|---|---|---|---|---|
| Platform | Integrated light | Platform | Integrated light | |
| Controller / PC-based vision — current | VS-G series (VS-G2900 controller + heads) | No — external lighting | Cognex VisionPro | No — external lighting |
| Controller / PC-based vision — established | XG-X series (controller + heads) | No — external lighting | Cognex VisionPro | No — external lighting |
The practical point in either direction: a controller-based system and an all-in-one smart camera are not interchangeable. Keep the smart-camera comparison to the Keyence VS and the Cognex In-Sight (2800 / 3800); only move to the controller tier (VS-G or XG-X on the Keyence side, VisionPro on the Cognex side) when the application genuinely calls for it.
The Bottom Line
The two brands map onto each other category for category, so the comparison reads the same way whichever brand you start from. Identify the class — entry sensor, smart camera, fixed-mount reader, handheld reader, or controller system — and read across to the counterpart in the other brand. Match the category first, and the detailed model selection (resolution, lens, mono vs colour) follows naturally from there.
References & Further Reading
Official manufacturer product pages for every model referenced in this guide.
Keyence
Related on AdoptAutomation: Introducing AdoptVision — our own industrial machine-vision platform →
Need help picking or programming a camera?
Whether you need help choosing the right camera or reader for your application, or programming and integrating one into your line, just get in touch — we are happy to help.
Get in Touch →This article is an independent reference guide for informational purposes. All product names, model designations, logos and trademarks are the property of their respective owners — Cognex Corporation and KEYENCE Corporation. Product images are reproduced solely for identification and comparison. Always verify model specifications against the current official documentation before specifying hardware.
